Part 1 — Why capacitor choice matters
As 5G, IoT, and electric vehicles push electronic systems toward higher frequencies, tighter space constraints, and greater reliability demands, capacitors play a decisive role in performance and stability.
Selecting the right capacitor affects power ripple, system efficiency, heat generation, and lifespan. A poorly chosen capacitor can lead to premature ESR increase, thermal degradation, or even catastrophic field failures.
For designers, capacitor selection means balancing capacitance, voltage rating, ESR, ripple current, temperature endurance, and physical size — all tailored to real operating conditions.
Part 2 — Overview of common capacitor types

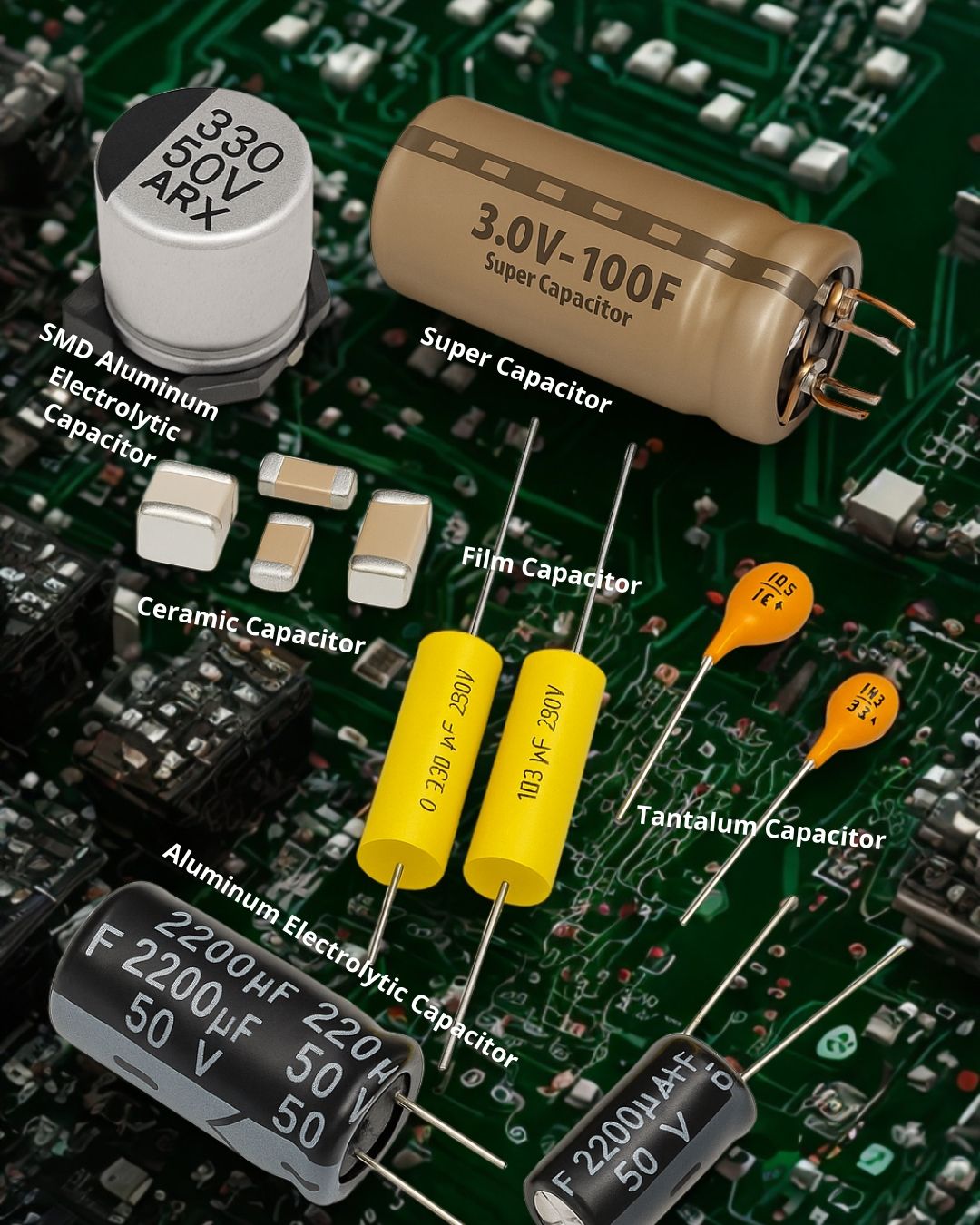

1️⃣ SMD Aluminum Electrolytic Capacitor
Features: High capacitance, moderate ESR, compact, ideal for automated assembly.
Applications: LED drivers, DC-DC converters, compact power modules.
Design note: Ensure adequate lifetime margin; pair with ceramics for high-frequency decoupling.
2️⃣ Aluminum Electrolytic Capacitor (Radial Type)
Features: Larger capacity and voltage range; durable, economical.
Applications: High-power supplies, industrial controls, audio amplifiers.
3️⃣ Hybrid (Solid–Liquid) Aluminum Electrolytic Capacitor ⚙️
Features: Combines the strengths of both liquid electrolytic and solid polymer capacitors.
Lower ESR than standard electrolytics → better ripple suppression and thermal behavior.
Higher voltage and capacitance range than full-solid polymer capacitors.
Longer lifetime and better tolerance to voltage spikes.
Applications: Automotive electronics (ECUs, ADAS), power converters, industrial controllers, and server power modules — where reliability, ripple handling, and temperature endurance are critical.
Design note: Hybrids are increasingly replacing traditional electrolytics in demanding environments due to their balance between performance and cost.
4️⃣ Ceramic Capacitor
Features: Non-polar, ultra-low ESR/ESL, high frequency response.
Applications: High-speed digital, RF, and filtering circuits.
Note: Capacitance drops under DC bias — account for real working conditions.
5️⃣ Tantalum Capacitor
Features: High stability, compact, temperature-resistant.
Applications: Portable electronics, smartphones, medical devices.
Note: Choose polymer tantalum for improved surge performance.
6️⃣ Film Capacitor
Features: Non-polar, self-healing, long life.
Applications: Motor drives, snubber circuits, EMI suppression.
7️⃣ Supercapacitor
Features: Extremely high capacitance, fast charge/discharge.
Applications: Backup power, regenerative energy capture, UPS systems.
Part 3 — How to choose the right capacitor
Step 1. Define your operating environment
– Nominal voltage, ripple voltage, frequency, temperature, vibration, and space constraints.
Step 2. Match technology to function
– Bulk energy storage: aluminum electrolytic or hybrid.
– Mid-frequency filtering: polymer or tantalum.
– High-frequency decoupling: ceramics.
– Long-life / high-surge areas: film or hybrid aluminum.
Step 3. Validate reliability
– Check ripple-current ratings and derating curves.
– Estimate lifetime at your operating temperature.
– For critical systems, perform ESR and leakage monitoring after burn-in.
Pro tip: A balanced design often combines hybrid aluminum capacitors for ripple endurance with ceramics for high-frequency noise suppression — ensuring both stability and long-term reliability.
Conclusion
Different capacitor families solve different problems. The hybrid aluminum electrolytic capacitor bridges the gap between traditional wet electrolytics and solid polymers, making it one of the most promising technologies for modern power electronics.
Choosing wisely — and testing thoroughly — means your design runs cooler, lasts longer, and performs better.
