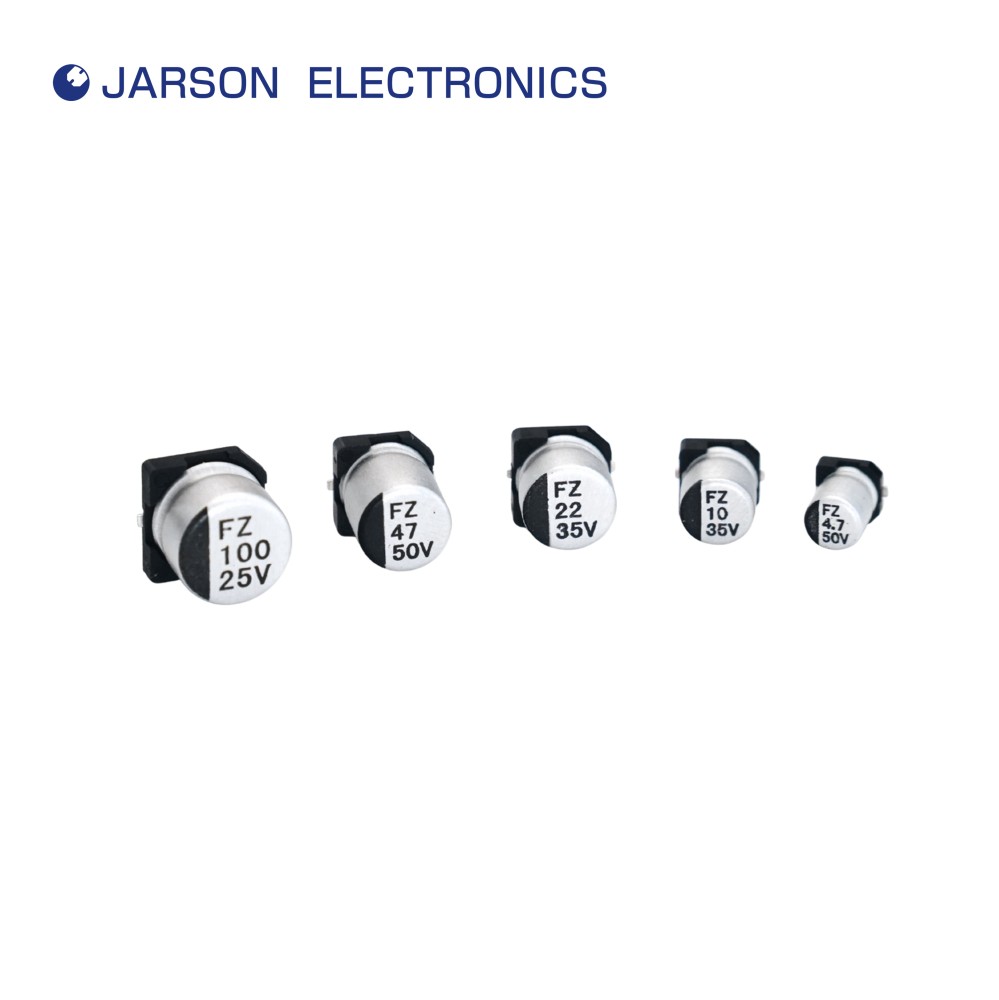

In response to the increasingly stringent requirements for high power density, high reliability, and miniaturization in today’s electronics and power systems, Jarson Electronics has introduced the FZ Series Ultra-Low Impedance, Long-Life SMD Aluminum Electrolytic Capacitors, designed specifically for switching power supplies and DC/DC converter modules.
As a new-generation filtering and energy-storage solution, the FZ Series achieves 40%–60% lower impedance compared with Jarson’s general-purpose LZ Series, reaching an ultra-low ESR level.
Combined with a long service life of 2,000–5,000 hours at 105°C, these capacitors significantly enhance power-supply filtering performance, efficiency, and reliability—even under harsh operating conditions.
They provide a robust component platform for power systems in industrial control, automotive electronics, and other applications requiring high reliability.
Key Features & Performance
1. Ultra-Low ESR for Lower Ripple and Reduced Heat
Covering sizes from Φ4 to Φ12.5, rated voltages from 6.3V to 100V, and capacitances from 1µF to 3300µF, the FZ Series adopts an optimized ultra-low ESR formulation tailored for high-frequency switching power supplies and DC/DC output filtering. It effectively reduces output ripple and noise, minimizes self-heating, and delivers notable improvements in power-supply efficiency and stability.
2. Long Life at 105°C & High Reliability
With a lifetime rating of 2,000–5,000 hours at 105°C, the FZ Series ensures exceptional reliability. Compact sizes are ideal for dense control boards, while larger sizes serve as main output filter capacitors—allowing a single series to cover the reliability requirements of power supplies across various power levels.
3. Wide Temperature Range & Vibration-Resistant Structure
Operating temperature: –55°C to +105°C. Reinforced structural design enhances vibration resistance, making the series well suited for outdoor equipment, industrial controls, automotive electronics, and other environments exposed to thermal cycling and mechanical stress.
4. SMT-Friendly & Environmentally Compliant
The entire series uses SMD packaging compatible with reflow soldering and tape-and-reel automation. Compliant with RoHS 2.0, REACH & SVHC, and AEC-Q200, the FZ Series is easy to integrate into projects requiring strict certification standards.
Application Examples
1. Fire Safety / Security Systems and Long-Operating Devices
Commonly used specifications: 47–330µF / 6.3V, 100–120µF / 16V Typical applications include detectors, alarms, indicator panels, emergency lighting, and power control units. These capacitors provide stable low-ripple filtering and voltage smoothing for 3.3V / 5V / 12V output stages in compact PCBs.
2. Industrial Control & Automotive Power Modules
Recommended specifications:
100–220µF / 16V
47–220µF / 35V, 50V Suitable for 12V/24V buses and DC/DC outputs, they effectively absorb ripple from high-current switching, provide energy buffering during startup or load transients, and ensure reliability with adequate voltage margins.
3. Home Appliances, Power Adapters, and General PCB Applications
Recommended specifications:
220–470µF / 16V, 25V for main output filtering
10–22µF / 25V for local decoupling Widely used in appliance control boards, display driver boards, and adapter output stages, helping improve startup behavior and transient response.
Quick Selection Guide
Part Number Supplier No. Specification Size (mm)
FZ0J101M0506 C3646793 100µF 6.3V 5×5.7
FZ0J470M0506 C5260677 47µF 6.3V 5×5.7
FZ1C101M0606 C3646798 100µF 16V 6.3×5.7
FZ1V470M0606 C3646801 47µF 35V 6.3×5.7
FZ0J331M0607 C5260681 330µF 6.3V 6.3×7.7
FZ1C221M0607 C3646804 220µF 16V 6.3×7.7
FZ1H221M1010 C3646818 220µF 50V 10×10.5
Selection Tips
Choose a rated voltage (6.3–100V) according to the supply voltage, with 1.25–1.5× safety margin.
Balance capacitance and PCB space by selecting among sizes such as 5×5.7, 6.3×5.7, 6.3×7.7, 8×10.5, 10×10.5, etc.
For mass-production projects, prioritize mainstream capacitance values (47 / 100 / 120 / 220 / 330 / 470µF) to simplify design expansion and inventory management within the same series.
With proven technology and validation across multiple application scenarios, the FZ Series is now available on the LCSC Electronics platform, offering engineers a capacitor solution that excels in performance, lifetime, and cost-effectiveness. It is an ideal choice for next-generation power-supply filtering and energy-storage design.
